Preview: Parker at Global Petroleum Show, Calgary, Canada, June 12-14

Parker highlights the leak elimination benefits of close-coupled instrumentation

Barnstaple, UK, April 4, 2012 --- A diverse range of flanged products aimed at eliminating potential leak paths in process instrumentation connections will be highlighted at the Global Petroleum Show by the Instrumentation Products Division of Parker Hannifin - the global leader in motion and control technologies. In particular, the company will be showing the latest additions to its extensive monoflange and Pro-Bloc ranges of block and bleed valves, including versions that comply with the Class A ultra-low-emission requirements of the international ISO 15848 standard. Also on display will be a new series of flushing rings that eliminate the need for port adapters.

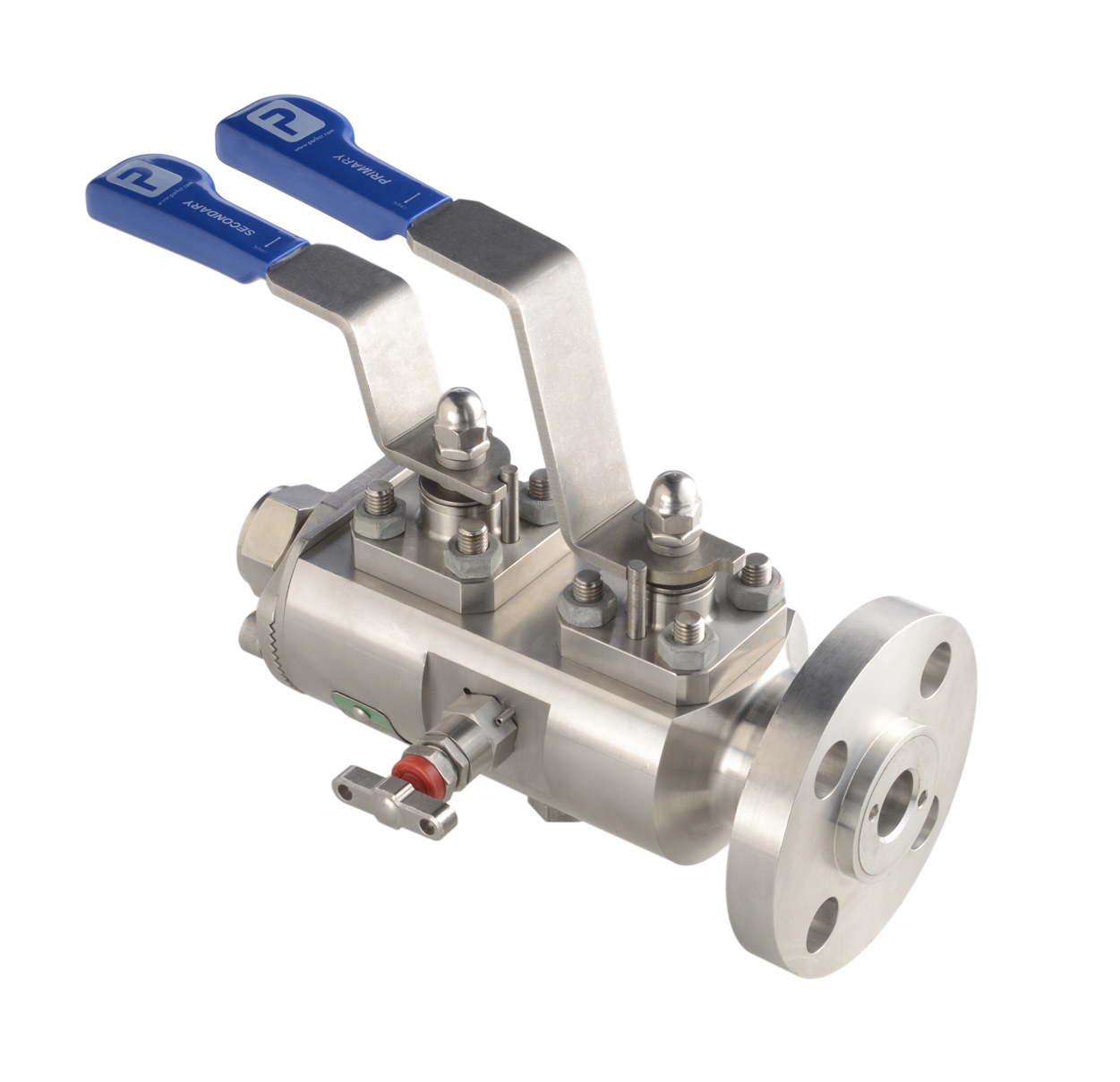

Parker's monoflange and Pro-Bloc valves are designed to couple instrumentation to the process lines as closely as possible, and to eliminate any use of threaded components - the valve vents can incorporate single- or two-ferrule compression type tube fittings. By combining all necessary primary and secondary valves on a single one-piece body, which mounts directly onto a process flange without use of additional fittings, both series of products reduce the number of potential leak paths substantially. They also help cut installation time and cost. A wide choice of valve configurations - including single block and bleed, and double block and bleed - provides a very flexible interconnection scheme, enabling plant engineers to match requirements very easily.

Parker goes to considerable lengths to ensure the material used for its flanged products is of the highest quality. Raw material is sourced from mills and foundries within western Europe, with fully traceable records for quality audit purposes. Furthermore, each body is forged from a single piece of grain flow controlled steel. As standard, they can be fabricated from A105 carbon steel, AF350 LF2 low temperature carbon steel, A182-F316 stainless steel and A182-F51 duplex stainless steel. Optional exotic alloy materials include super duplex, alloy 400, 6Mo and alloy 625. Parker has developed considerable production expertise in 6Mo - which is fast becoming one of the most popular materials for high corrosion applications - and is able to deliver custom valve configurations with very short lead times.

At the Global Petroleum Show, Parker will also be showing a new series of flushing rings which employ a novel 'oversize' design to maximize flexibility. Flushing rings are normally used between a process isolation valve and the diaphragm seal of a pressure transmitter; side ports on the ring allow flushing media to be injected and ejected so that the diaphragm can be 'washed' free of deposits which affect measurement accuracy. A conventional flushing ring has a smaller diameter than the process and diaphragm seal flanges, and is simply held in place by the pressure exerted by the flange bolts. The flushing ports consequently require extension adapters to bring their valves clear of the flanges, potentially introducing additional leak paths.

Parker's flushing rings are the same diameter as the flanges, eliminating the need for flushing port adapters, and the valves can be supplied screwed or welded directly onto the ring's external face, reducing installation time and costs. Parker produces two types of flushing rings. One has through-holes for the flange bolts and is designed for use with same-size flanges on both sides. The other has a tapered internal bore and two different flange faces with captive studs, designed for fitting between flanges with different diameters. Typically, this could be used when a 2-inch process-side flange is coupled to a 3-inch transmitter-side flange, to maximise diaphragm size for improved measurement accuracy.

Background information
With annual sales exceeding $12 billion in fiscal year 2011, Parker Hannifin is the world's leading diversified manufacturer of motion and control technologies and systems, providing precision-engineered solutions for a wide variety of mobile, industrial and aerospace markets. The company employs approximately 58,000 people in 47 countries around the world. Parker has increased its annual dividends paid to shareholders for 55 consecutive years, among the top five longest-running dividend-increase records in the S&P 500 index. For more information, visit the company's web site at http://www.parker.com, or its investor information web site at http://www.phstock.com.
